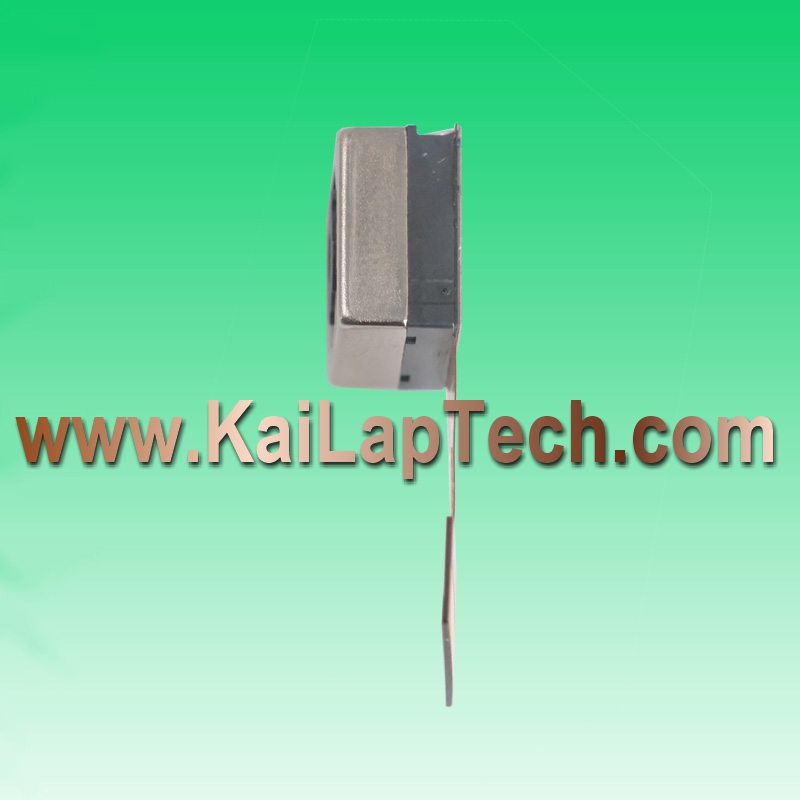

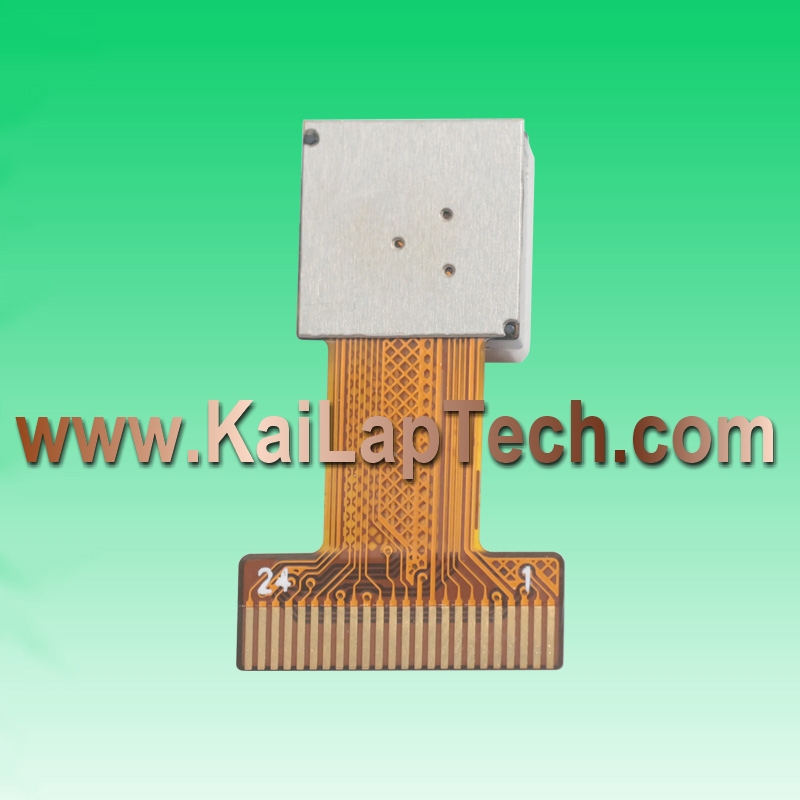

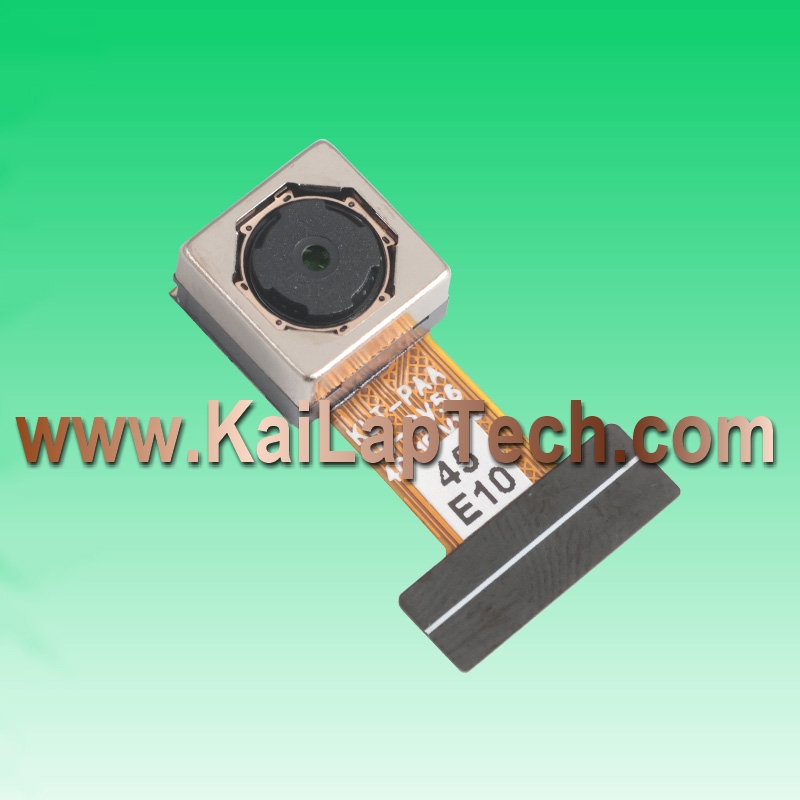

| 5MP OmniVision OV5640-1B DVP Parallel Interface ESP32 Auto Focus Camera Module 45mm Short Focus |
| Model No. KLT-PAA40-OV5640-1B V1.0 45mm ESP32 |
| Camera Module No. |
KLT-PAA40-OV5640-1B V1.0 45mm ESP32 |
| Resolution |
5MP |
| Image Sensor |
OV5640-1B |
| Sensor Type |
1/4" |
| Pixel Size |
1.4 um x 1.4 um |
| EFL |
3.29 mm |
| F.NO |
2.80 |
| Pixel |
2592 x 1944 |
| View Angle |
68.7°(DFOV) 58.1°(HFOV) 45.0°(VFOV) |
| Lens Dimensions |
8.50 x 8.50 x 5.07 mm |
| Module Size |
21.25 x 8.50 mm |
| Module Type |
Auto Focus at 45mm Distance |
| Interface |
DVP Parallel |
| Auto Focus VCM Driver IC |
Embedded |
| Lens Type |
650nm IR Cut |
| Operating Temperature |
-30°C to +70°C |
| Mating Connector |
FH12-24S-0.5SH |
|
