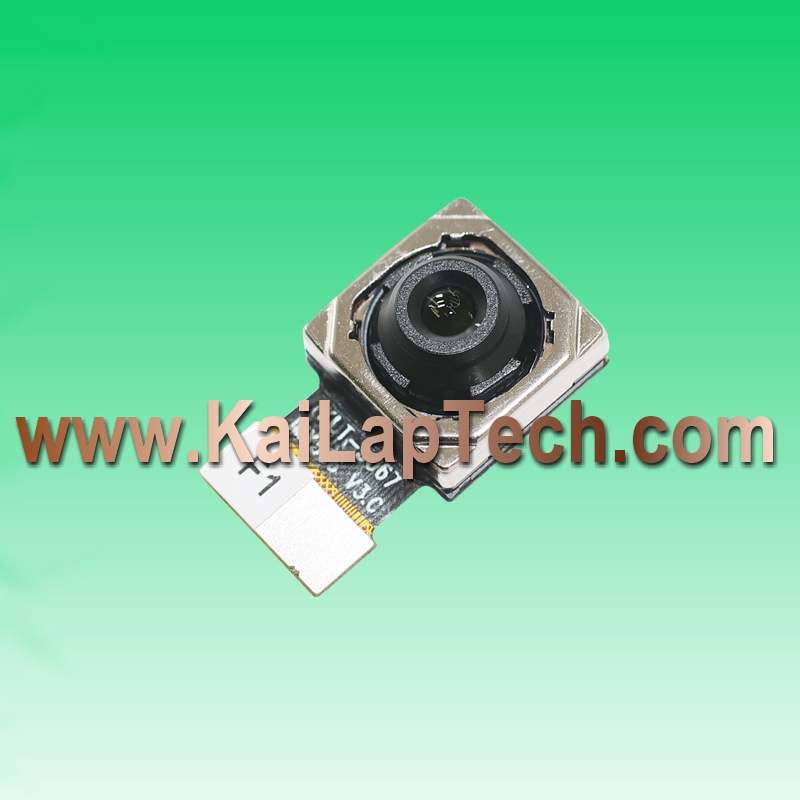

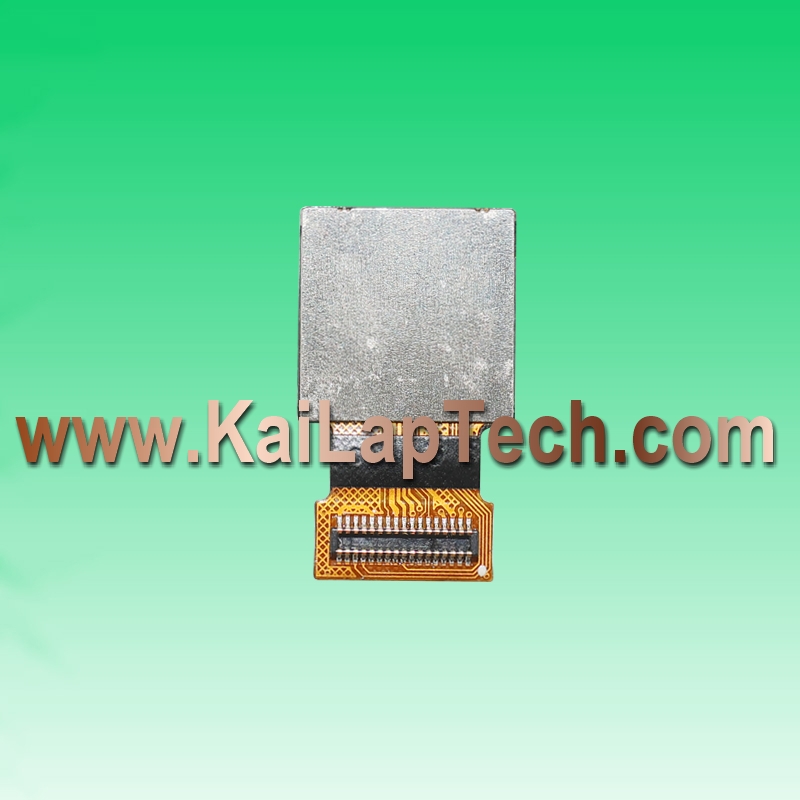

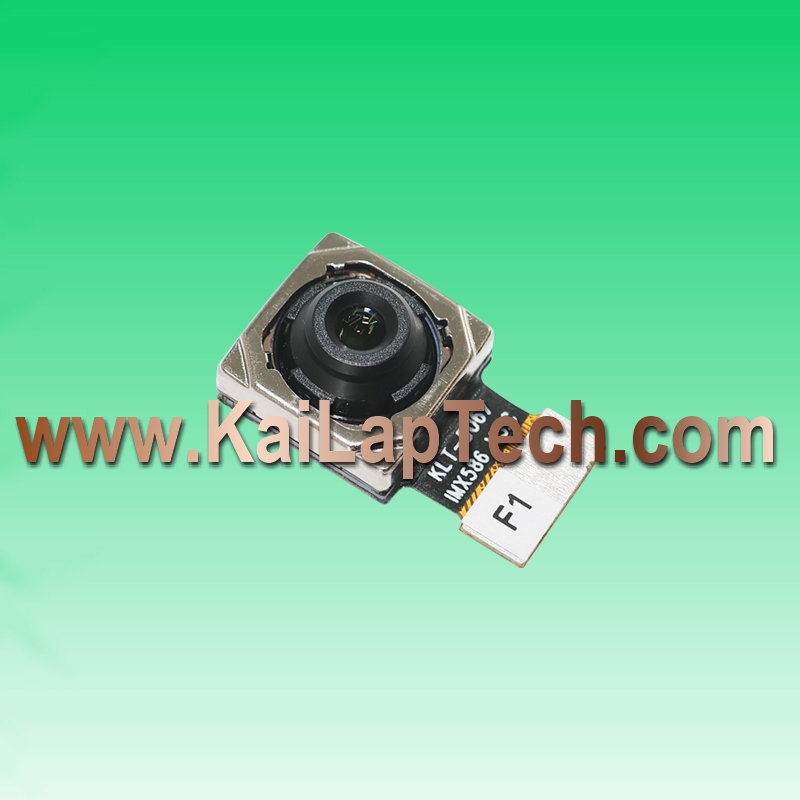

        48MP Sony IMX586 C-PHY MIPI Interface Auto Focus Camera Module
        Model No.   KLT-5067-IMX586 V3.C








 Camera Module No. KLT-5067-IMX586 V3.C
 Resolution 48MP
 Image Sensor IMX586
 Sensor Type 1/2.0"
 Pixel Size 0.8 um x 0.8 um
 EFL 4.74 mm
 F.NO 1.79
 Pixel 8000 x 6000
 View Angle 79.4°(DFOV)  67.2°(HFOV)  53.2°(VFOV)
 Lens Dimensions 10.90 x 10.90 x 6.21 mm
 Module Size 18.61 x 10.90 mm
 Module Type Auto Focus
 Interface C-PHY MIPI
 Auto Focus VCM Driver IC DW9800W
 Lens Type 650nm IR Cut
 Operating Temperature -20°C to +70°C
 Mating Connector BM20B(0.8)-30DS-0.4V(51)
