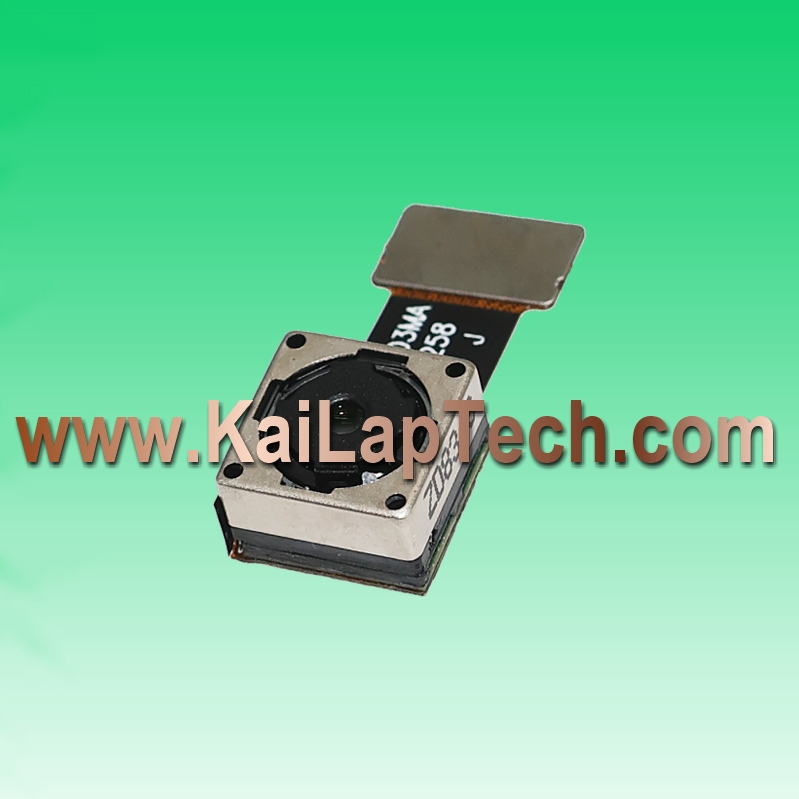

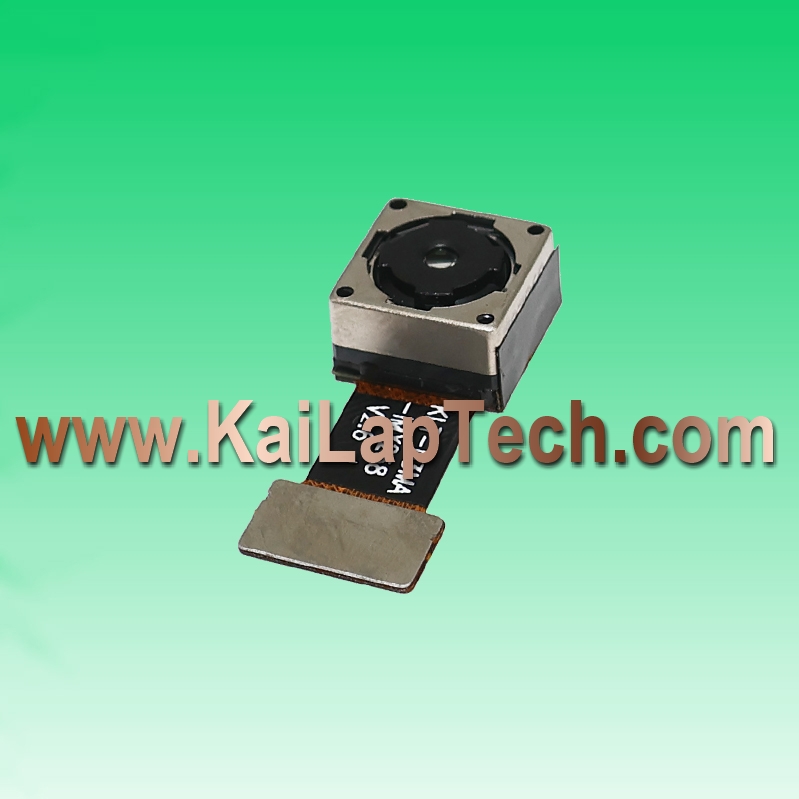

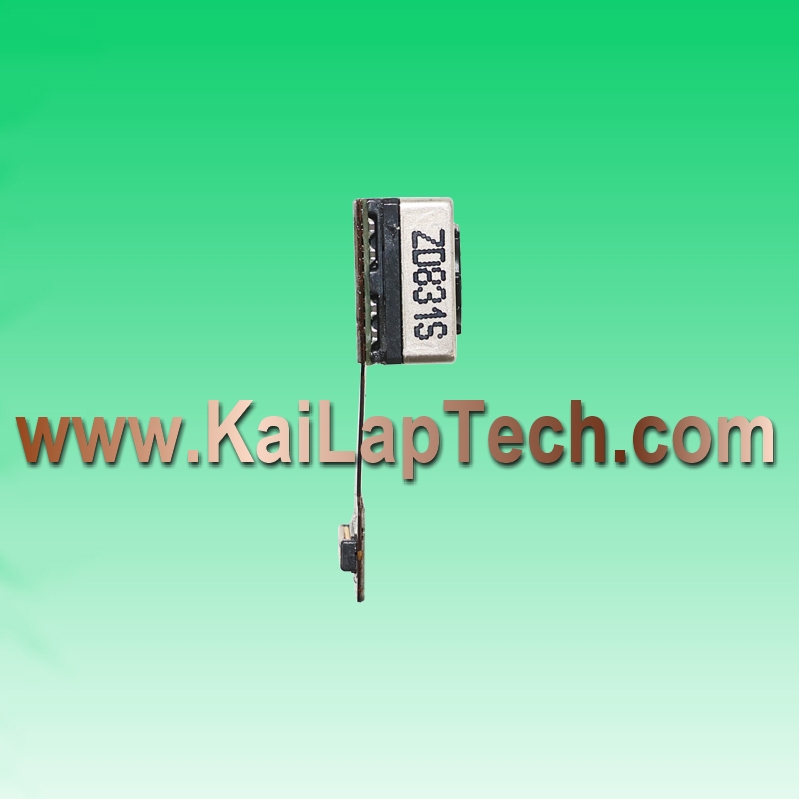

| 13MP Sony IMX258 4-Layer MIPI Interface Auto Focus Camera Module |
| Model No. KLT-D3MA-IMX258 V2.6 |
| Camera Module No. |
KLT-D3MA-IMX258 V2.6 |
| Resolution |
13MP |
| Image Sensor |
IMX258 |
| Sensor Type |
1/3.06" |
| Pixel Size |
1.12 um x 1.12 um |
| EFL |
3.85 mm |
| F.NO |
2.20 |
| Pixel |
4224 x 3136 |
| View Angle |
74.4°(DFOV) 62.7°(HFOV) 48.7°(VFOV) |
| Lens Dimensions |
8.50 x 8.50 x 5.37 mm |
| Module Size |
20.85 x 8.50 mm |
| Module Type |
Auto Focus |
| Interface |
4-Layer MIPI |
| Auto Focus VCM Driver IC |
DW9763 |
| Lens Type |
650nm IR Cut |
| Operating Temperature |
-20°C to +70°C |
| Mating Connector |
BBR43-30KB533 |
|
